Accurate estimation of dwelling area and building characteristics plays a critical role in urban planning, housing assessment, infrastructure provision, taxation support, and environmental impact analysis.
Traditionally, this work has relied on manual digitisation of building footprints, field surveys, and on–site inspections, often supported by outdated or incomplete planning records. While effective at small scales, these methods are time–consuming, labour–intensive, and difficult to apply consistently across large geographic areas. They can also introduce subjectivity and inconsistencies between operators.
There is therefore a clear need for an automated, repeatable, and scalable methodology capable of estimating dwelling surface area and structural characteristics using high–resolution Earth Observation (EO) data.
With the growing availability of high–resolution EO datasets, it is now possible to generate precise building classifications and gain deeper insights into the structure and composition of our urban environments.
Mallon colleague Michael O’Connor has carried out this study.
How Earth Observation Enables Automated Building Assessment
For this case study in Headford, Co. Galway, LiDAR data obtained from Geological Survey Ireland (gsi.geodata.gov.ie) were used to generate Digital Surface Models (DSMs) and Digital Terrain Models (DTMs). By analysing the difference between these surfaces, we can accurately derive feature heights across the study area.
High–resolution RGBI ortho–imagery (25cm resolution) from BlueSky was then integrated to distinguish between urban and non–urban features. Spectral indices such as the Normalised Difference Vegetation Index (NDVI) and Artificial Surface Factor were applied to enhance classification accuracy.
By combining LiDAR–derived elevation data with high–resolution imagery, buildings can be clearly identified and categorised. In this study:
- Buildings were delineated automatically
- Height values calculated and colour–coded
- Surface area was derived
- Estimated number of levels per building was inferred
This integrated approach enables a comprehensive assessment of building form and dwelling characteristics across the urban landscape.

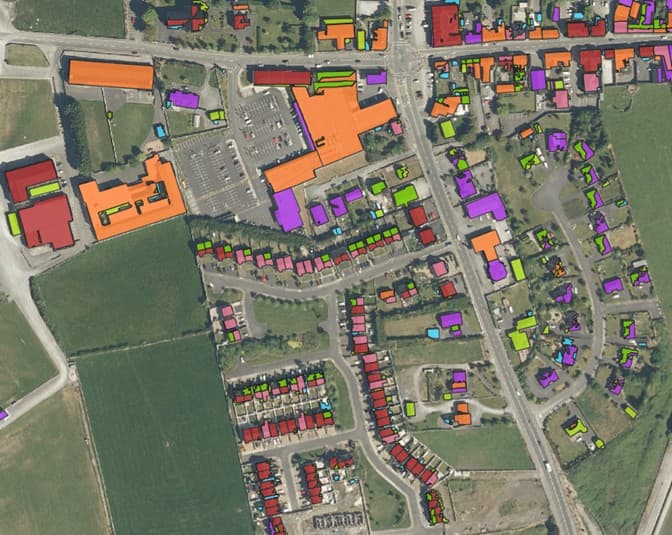

Fig 1: Building Classification, Headford, Galway. Building height represented by colour

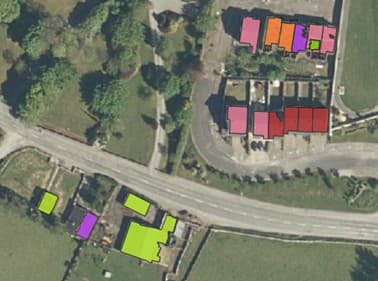

Fig 2: A closer view of the building classification
Data Sources:
- Bluesky –RGB Tile 526746 (2017), Ortho–imagery (25cm resolution)
- Geological Survey Ireland – LiDAR DTM and DSM (gsi.geodata.gov.ie)
Key Benefits for Housing and Urban Planning
The integration of EO imagery and LiDAR data enables automated, scalable estimation of dwelling area, significantly reducing reliance on manual digitisation and field surveys.
Key benefits include:
- Scalability – Large geographic areas can be processed efficiently
- Consistency – Automated workflows reduce subjectivity
- Repeatability – Methods can be re–applied as new data becomes available
- Timeliness – Updates can be generated as datasets are refreshed
- Improved accuracy – Enhanced building delineation and height–based classification
The outputs support housing assessment, infrastructure planning, urban density analysis, environmental modelling, and evidence–based decision–making.
Data Availability and Methodology Constraints
The effectiveness of this approach is dependent on data availability and quality. High–resolution ortho–imagery and LiDAR coverage are not yet uniformly available nationwide, and LiDAR datasets in particular may have varying resolution and capture dates.
The workflow may also require supporting vector datasets (such as planning layers or authoritative reference data) to assist classification and validation. Where such inputs are limited or outdated, additional processing or manual review may be required.
As such, the robustness of results is directly linked to the quality, resolution, and currency of the underlying datasets.
Unlocking Smarter Urban Intelligence
As urban areas continue to expand and housing demand increases, access to reliable, scalable, and up–to–date spatial intelligence becomes increasingly important.
By combining high–resolution Earth Observation Data with automated analytical workflows, dwelling area and building characteristics can be assessed more efficiently and consistently than ever before.
This approach represents a significant step towards smarter urban planning, improved housing assessment, and more data–driven policy decisions.
